The Flowchart

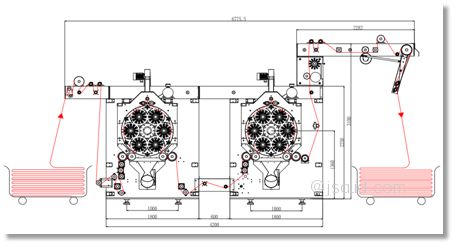

Front Inlet And Back Out

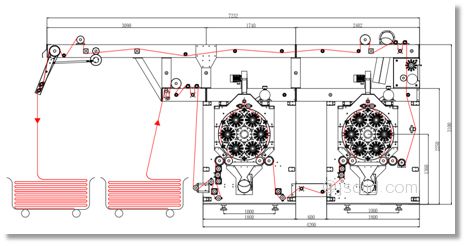

Get In And Out Simultaneously
Application & Characteristics
Ⅰ、Application
The machine is suitable for brushing process of purecotton, polyester cottion and biended fabric.
Ⅱ、The characteristics of the fabric after brushing process
After brushing, the fabric will feel more soft, woolen and comfortable to wear, the surface of thefabric has a plush feel.
Technical Data
Roller width 2200 mm
Working width 2000 mm
Driving side(viewing in cloth run direction) Left/right hand side (customized)
Speed range of the multi-motor drive 8-50 m/min
Average production speed 25-40 m/min
Voltage (phase-phase) 3x400 V +/-10%
Frequency 50 Hz +/-2%
Control voltage 24 VDC/ 230 VAC
Total power of range Approx.120 KW
Panting color Dark grey 7545C Orange yellow 471C
Configuration Instruction

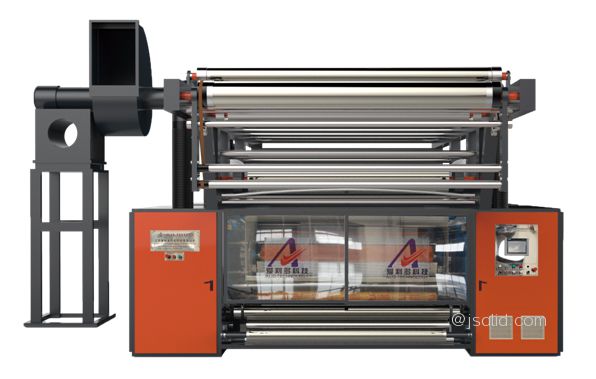

1、MH912 type brushing machine also called as large cylinder type planetary gear brushing machine, the material of brushing roller is Carbon or ceramic. There are 2 drive rollers in front and back in the grinder which used to adjust the tension of the fabric so that the fabric is always in a tight state. Beside this, The brush roller in brush box clean the villus. There are 12 brushing rollers operate as planetary (i.e. operation with 1400 RPM autobiography, on the other hand, with large cylinder type planetary gear Synchronous rotation).In this environment, more fabric contact times with soft effect and finally to the fabric texture. Brushing machine equipped with protective doors and windows, whole sealing, no leakage of wool dust.
2、The tension operation of fabric can be preset with function as automatic feedback and storage. Meanwhile, the whole machine is equipped with tension control, which realizesthe constant tension of brushing proce.
3、The inlet and out of the cloth all have tension sensor to ensure the operation of normal guide cloth.
4、Electrical parts:complete exchange of frequency conversion with synchronous transmission,PLC control,man-machine interface,touchscreen and button control.The touchscreen, the contacts,the button,the circuit breaker and the main electronic components are all provided by import brand.
